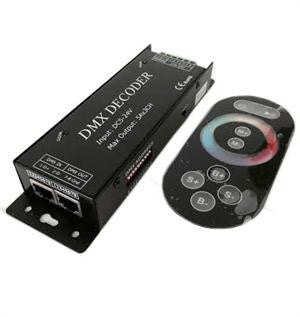

DMX Decoder for LED Strip Lights 5V-24V DC 5A-CH 2CT070

DMX Decoder for LED Strip Lights 5V-24V DC 5A-CH 2CT070

$73.60

RGB LED Strip Controller with touch Remote Control Decoder

Input : DC 5V–DC 24V
Power: <5A per channel (total of 3 channels <15A)
Channel: R/G/B/ COM+
Output: 5V<75W, 12V<180W, 24V<360W
Dimensions: 175x 53x 27mm
Operating temperature: -20 ° C ~ 60 ° C
Weight: 350g

What is the controller and decoder combined? It is our latest LED controller DMX decoder. It has the function of controller and decoder. As a controller, it can choose 7 kinds of static color and 4 kinds of color change. When he uses a decoder developed Micro Controller Unit receives DMX 512 signal, then converts to controller PWM signal to LED can be controlled. The three primary colors RGB (red, green and blue) can be adjusted via the three channels in 256 steps. This product is suitable for all LED RGB Bulb with common anode (Such as the RGB LED Strip, RGB LED lamp, etc.)

Specifications:
Touch remote control: 7 stillness colors and 4 color changing program
Color control in 256 levels
DMX address selectable
Lightning protection, over current protection at DMX Connector.


Package contains:

1 x LED Controller Decoder
1 x Touch Remote Control
1 x English manual
