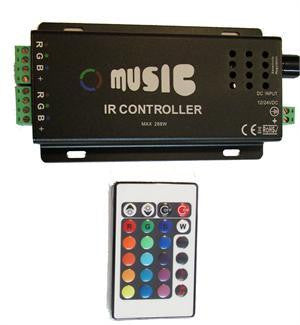

12A Music Controller for RGB LED Strip Lights MU120
12A Music Controller for RGB LED Strip Lights
|
12A Music Controller
|
|
| Input Voltage: | DC12V / 24V |
| Output Port: | 2 Ports (RGB Common Anode) |
| Max. Output Current: | 12A (2A more from previous version) |
| Max. Power Output: |
12V: 144W(12V x 12A) 24V: 288W (24V x 12A) |
| Estimation of Max. Length of strips: |
12V 5050 30LED/m: 10m x2 ( x2 means parallel connection. Please use 2ports ) |
| Sound Sensitivity: | > 70 dB |
| Optimized Thermal? Management : | < 40C |
| Operation Temperature: |
-20~45C |
| Storage Temperature : | -40~60C |
| Product Size: | L169 xW84 xH25mm |
| Weight: | 270g |
Do you want to connect longer RGB strips for music controller?
This sound sensitive IR LED controller for RGB strip light can select 16 colors and 2 pre-programmed patterns; FLASH and FADE. It can adjust the brightness and speed of colors, and the color of the light will FLASH/FADE according to the beat of music.
The sensitivity of sound can be adjusted by the dial!
There are 2 ports, you can light up 2 lines of RGB Strip lights!
It is upgraded from previous countroller, the new output current is 12A, It can connect 20m of 30LED/m RGB or 10m of 60LED/m RGB Strips (Please see the chart on the left for the detail).
Install this party controller and power up your weekend!
Package included:
1 x 12A Sound Sensitive RGB Controller
1 x Remote Controller with battery
1 x User manual
Q: I have a single color 3528 RGB strip light. Can I use this controller?
A: Yes, you can also use it for 3528 SMD size.
Max. length of the strips are: 10m x2 of 3528 120LED/m, or 20m x2 of 3528 60LED/m.
