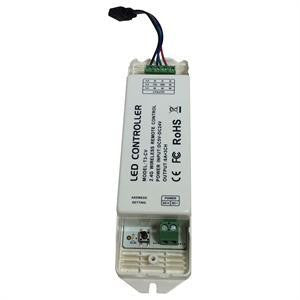

RGB Strip Receiver for T3M RGB Multi Zone LED Light Controller
T3MReceiving Controller
Input voltage:DC5V-DC24V
Max current load: 5A*3CH Max 15A
Max output power:75W/180W/360W/(5V/12V/24V)
Compatible remote control: T1/T2/T2M/S913/S913M/S913X
Working Temperature: -30 deg C ~ -55 deg C
Dimension: L175*W44*H30(mm)
Weight (GW): 110g
Connection
We recommend you to connect the receiver one by one when multiple S903-CV receivers learn the same S series remote. For example, turn on one S903-CV and learn the remote,
then turn it off, and return the same procedure one by one. After multiple successful learning, turn on all the S903-CV receivers. During learning procedures, if all S903-CV receivers are on power, it may be difficult to learn remotes,
especially when learning different models of remotes. On the other hand, when learning, make sure only one remote is working. When using S912/913 remote to learn multiple S903-CV, they become a network and realize sync control.
Cancelling Connection of S903T-CV controller
Long press ON/OFF key on S903T-CV receiver for 3 seconds, you can hear the long beep sound. Do not let go of your finger and continue pressing for 5 more seconds. If you can hear the second beep sound and see the loaded lights flash for 3 times, then that means connection between receiver and remote is cancelled.
When remote turns off, then master receiver becomes the master control and make sync control.
Generally the smallest zone number/receiver becomes the master control. When you press the button on this master control, the sync control is realized.
Master control auto-selection mode: When no master control or the master control is power cut/deleted, the rest of the smallest (smallest number zone) becomes the master control. If the smallest zone has multiple controllers, you can choose one of them to be the master control. If the smallest zone has multiple controllers, you can choose one of them to be
the master control, then the rest of the controller is not master control.
When S911 remote learning multiple S903T-CV receiver, there is no master control.
When S912A/S913A remote has learned multiple S903T-CV receiver, there is no master control.
PRODUCT FEATURES:
1. S903T-CV is compatible with all S series remotes including S911,S912,S912A,S913, S913A
2. S903T-CV is constant voltage 3 channel LED controller.S903T-CV
3. S903T-CV supports three types of working modes: single color modes: color temperature mode and RGB mode
Learning Method of S903T-CV Controller:
Distance between S series remotes and S903T-CV need to be within 20cm. Long press ON/OFF key on S903T-CV for 3 seconds, you hear a long beep sound. Do not let go of your finger and long press any key on S series remotes in 5 seconds.
For setting different zones, press the number key you need. When you see the green light on remote flicker for 3 times and hear the other long beep sound from receiver, that means they are successfully learned. After successful learning, let go of your fingers on receiver and remote.
Cancelling connection of S903T-CV Controller:
Long press ON/OFF key on S903T-CV receiver for 3 seconds. If you can hear the long beep sound, do not let go of your finger and continue to press for 5 more seconds. You will hear the second beep sound and if you see the loaded lights flash for 3 times, that means connection between receiver and remote is cancelled.
NOTE: Learning the receiver will change the receiver's working mode.
