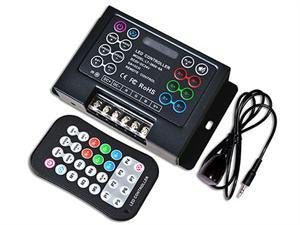

LT3800-6A RGB LED Strip Light Controller

LT-3800-6A RGB controller is a unique DIY version as well as a powerful combination that can control color changes of LED lights with 4-pin 3-channels (Common anode), built-in 12 modes which can change any of three types: color skipping, color smooth and color flicker, with touch functional buttons, provided with IR wireless remote control, users can control color changes of LED light by pressing the button on the controller or on the remote control panel, very users friendly. 2013 upgraded and improved performance, each function is optimized, using more humanization. Key to join new concept programming function, users only need 10 seconds can program DIY new changes effect easily! Greatly increase the value in using the controller.

Performance Features

• Built-in 12 modes which can change any of three types: color skipping, color smooth and color flicker.
• RGB per channel 4096 grey level; delicate, soft and flicker-free colorful gradients.
• Adjustable brightness & speed with the suspension function.
• Key to join new concept programming function, users only need 10 seconds can program DIY new changes effect and color easily!

Product parameter
LT-3800-6A RGB Controller
Input voltage DC5V~DC24V
Max current load 6A ×3CH Max 18A
Max output power 90W/216W/432W(5V/12V/24V)
Function Mode 12 Modes, 3 types
Scale levels >4096 steps per RGB
Static dimming 16 Steps per RGB
working temperature -3065
Dimension L146×W90×H31mm
Package Size L160×W130×H45mm
Weight (G.W) 470g
